The WiiM Amp Ultra is a high-performance streaming amplifier built for audiophiles and home theater users. This tutorial will walk you through the step-by-step setup guide to get your WiiM Amp Ultra up and running.
What You'll Need
- A WiiM Amp Ultra device
- A pair of passive speakers
- A smartphone or tablet
- Wi-Fi connection
- (Optional) Ethernet connection
- (Optional) A powered subwoofer
- (Optional) Other audio input devices you want to connect to the WiiM Amp Ultra
Step-by-Step Setup Guide
1. Unbox the WiiM Amp Ultra
Open the box, and you'll find the following items inside.
2. Connect the WiiM Amp Ultra's Audio Output
- Connect the WiiM Amp Ultra to passive speakers (Left and Right) using the speaker cables (banana plug or wired).
- Optionally, connect the WiiM Amp Ultra to a powered subwoofer using an RCA cable.
3. Connect the WiiM Amp Ultra's Audio Input (Optional)
Optionally, connect the WiiM Amp Ultra to an audio input source (e.g., CD player, PC or TV) via Line In, Optical In, or HDMI ARC.
- Via Line In
- Via Optical In:
- Via HDMI ARC:
4. Power on the Devices
- Connect the WiiM Amp Ultra to a power source using the provided power cable.
- If you connect a subwoofer and an audio input device to the WiiM Amp Ultra, connect them to a power source and power them on.
5. Download the WiiM Home App
Use your smartphone or table to scan the following QR code to download the WiiM Home app. The app will be used to set up and control your WiiM Amp Ultra.

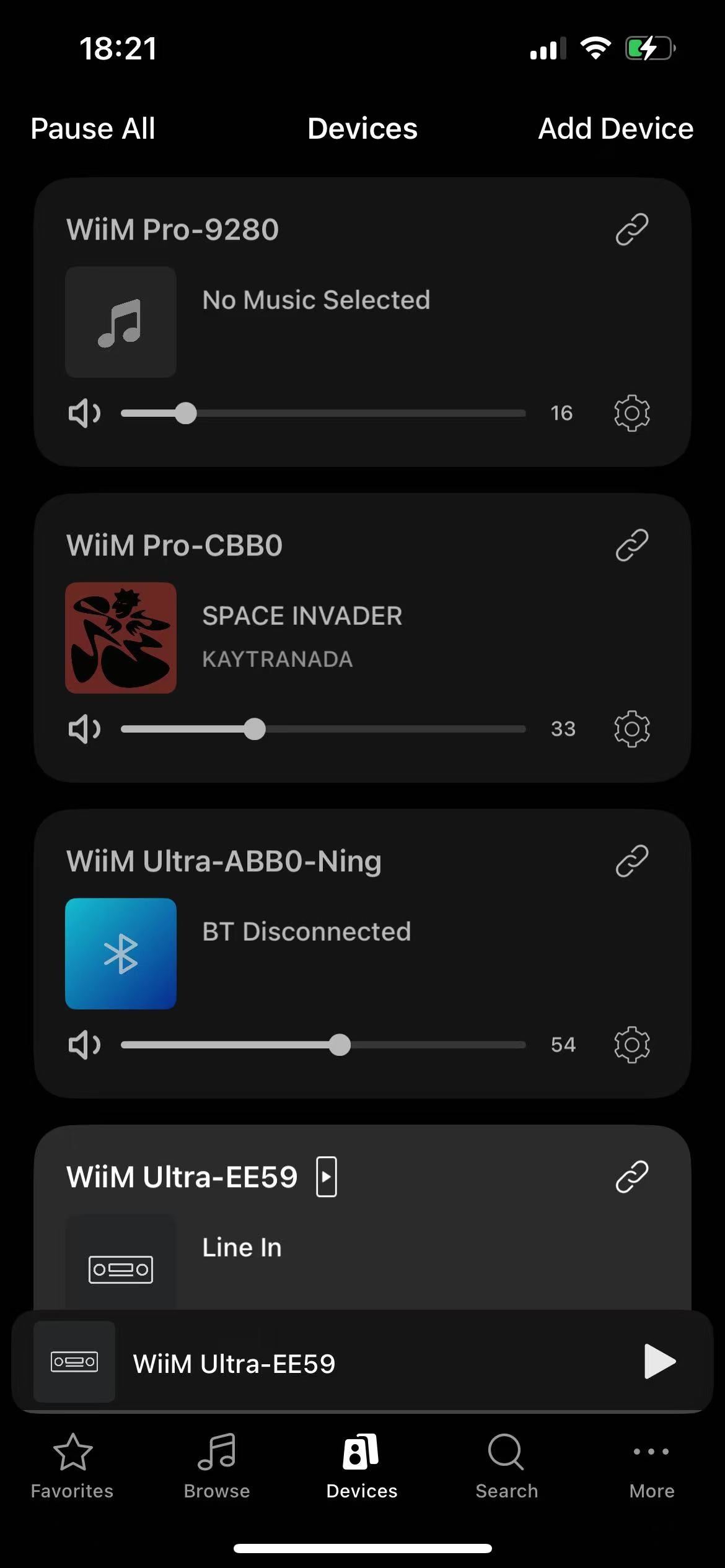

6. Set Up the WiiM Amp Ultra through the WiiM Home App
- Open the WiiM Home app on your smartphone or tablet.
- When your device appear in the app, tap Set Up to start the process.
- Follow the on-screen instructions to complete the setup process. During setup, you'll connect the WiiM Amp Ultra to the Wi-Fi network, check for firmware updates, and pair the WiiM Voice Remote 2.
For detailed setup instructions, refer to this video.
7. Play Music
Now, stream music to the WiiM Amp Ultra from the WiiM Home app or your favorite services — Spotify, Amazon Music, TIDAL, Deezer, Qobuz, and more. Or simply play from a connected audio input device. Enjoy your music with breathtaking clarity, depth, and power.
Tips
- Wi-Fi Connection: Ensure your Wi-Fi signal is strong in the location where you set up the WiiM Amp Ultra for a stable streaming experience.
- Device Not Connecting: If the WiiM Amp Ultra is not connecting to your Wi-Fi, try restarting your router and the WiiM Amp Ultra. For details, see Troubleshooting: How to Resolve Wi-Fi Connection Issues During WiiM Setup.
