1. Why FRITZ!Box for Your WiiM Network?

AVM’s FRITZ!Box routers rank among Germany’s top home‑network solutions—and you can mix and match models to form a single, seamless mesh without buying identical hardware. Once your mesh is up and running, all your WiiM streamers (as well as any Google Cast or AirPlay devices) will maintain a rock‑steady connection, even as you move from room to room.


2. Mesh Network Overview & AVM Resources


AVM provides two main “cascading” methods; each creates a unified mesh under a single Mesh Master:

  1. LAN‑Backhaul Mesh
    Cascading via Ethernet to a FRITZ!Repeater or another FRITZ!Box →

    https://en.fritz.com/service/knowledge-base/dok/FRITZ-Box-7490/3502_Cascading-the-FRITZ-Box-with-a-Mesh-Repeater-via-LAN/

  2. Wireless Mesh
    Cascading a FRITZ!Repeater entirely over Wi‑Fi →

    https://en.fritz.com/faqs/connecting-the-fritzrepeater-with-the-mesh-repeater/

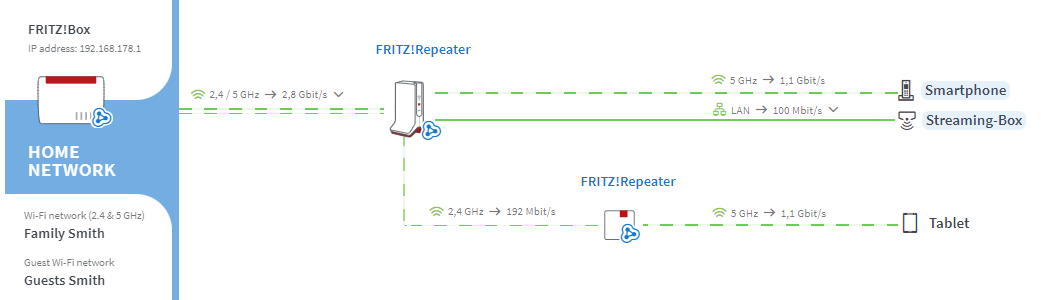

Once your mesh nodes are online, use AVM’s “Mesh Overview” to check signal strength and optimal repeater placement:
https://en.fritz.com/service/knowledge-base/dok/FRITZ-Box-7590/3420_Finding-the-ideal-location-for-the-Mesh-Repeater-in-the-FRITZ-home-network/


3. Step‑by‑Step Setup

A. Configure Your Mesh Master

  1. Choose Your Master
    Power on the FRITZ!Box you’ll use as the central controller.

  2. Log In
    Connect a PC or smartphone via Wi‑Fi (or LAN) and open
    http://fritz.box.

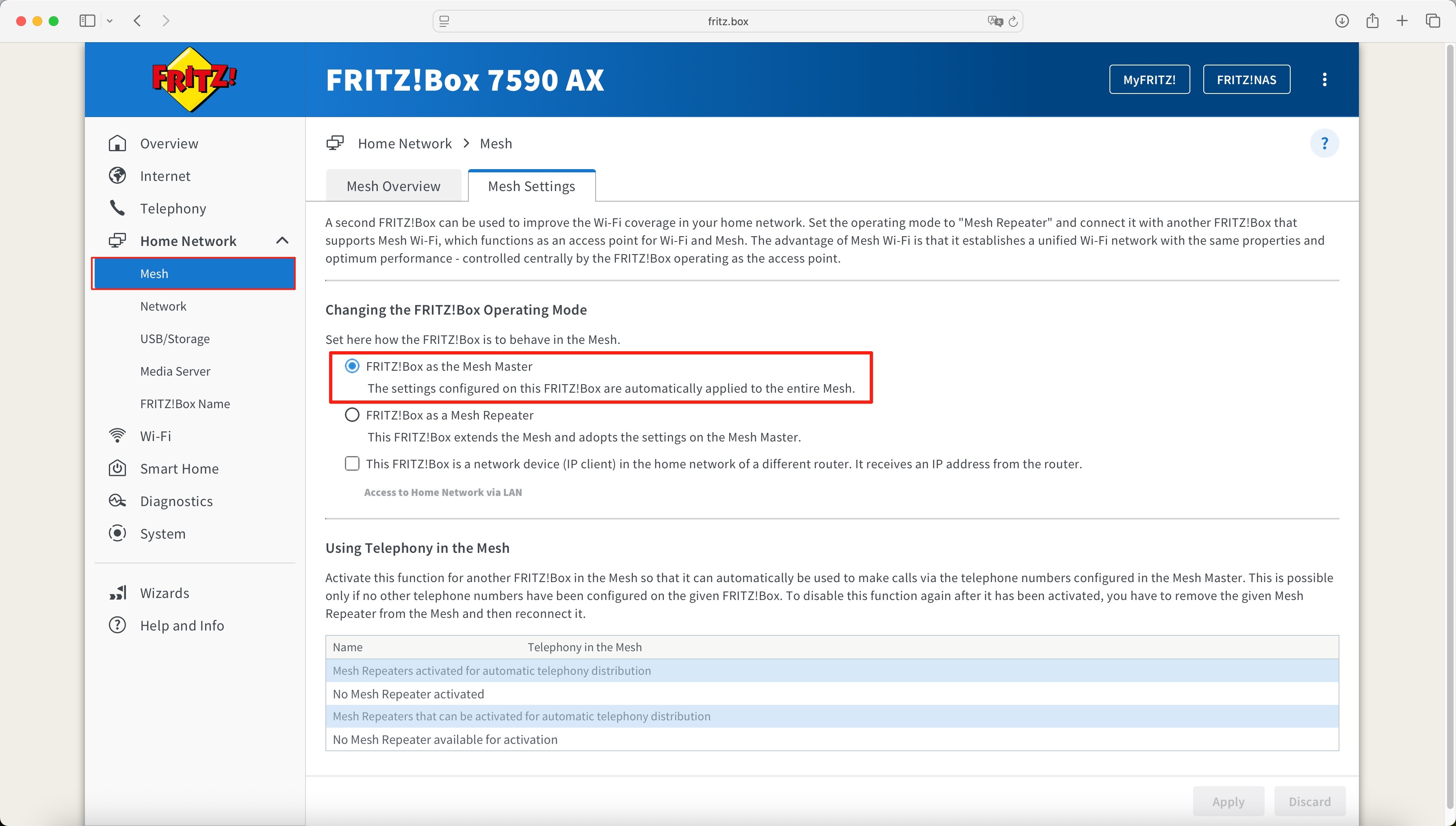

  3. Enable Mesh Master Role
    Go to Home Network → Mesh Settings and click
    “FRITZ!Box as the Mesh Master.”

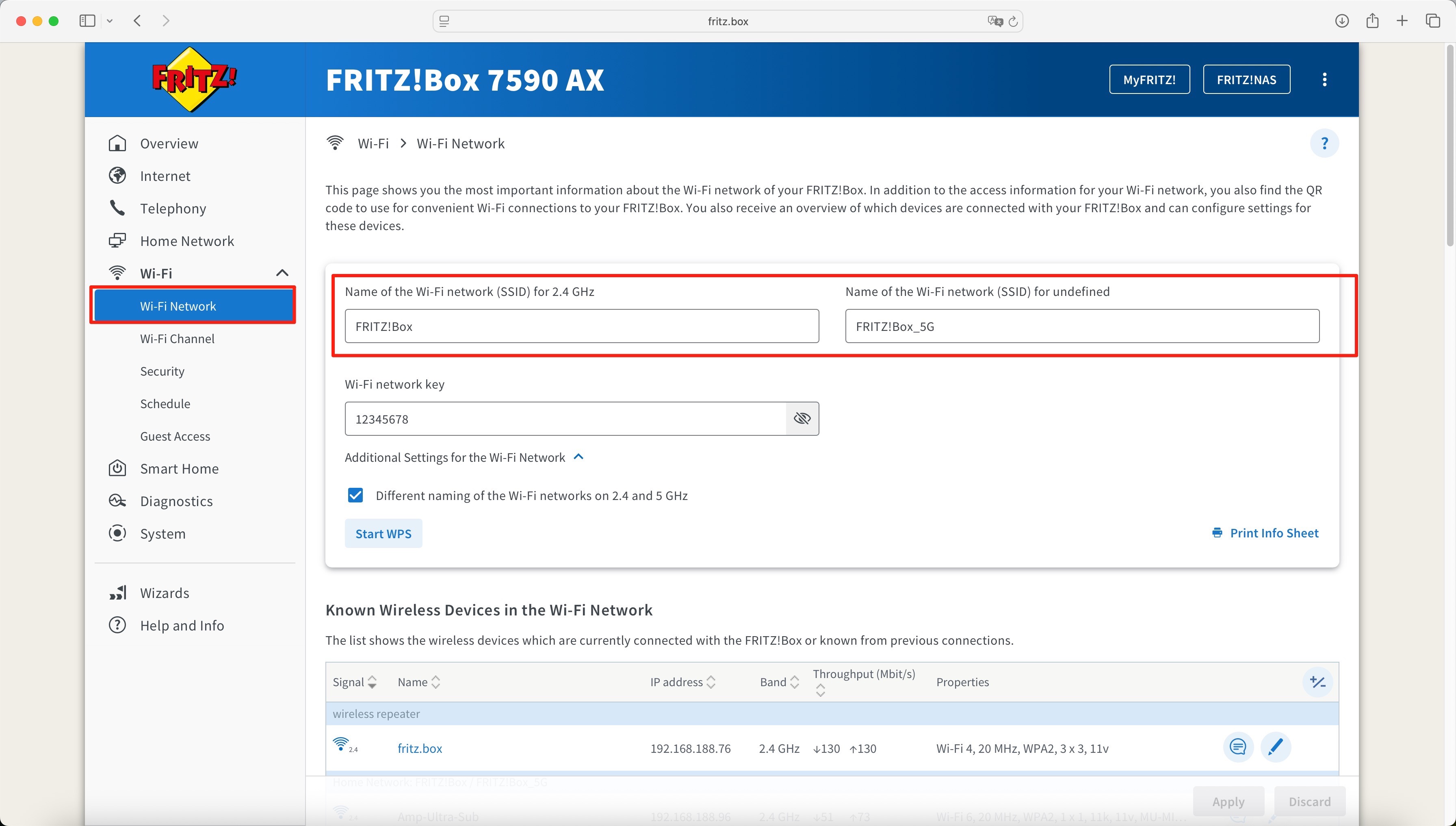

  4. Separate SSIDs for Bands (Optional)
    Under Wi‑Fi → Radio Network, activate “Different names for 2.4 GHz and 5 GHz.”

    • Name them distinctly (e.g. HomeWiFi and HomeWiFi‑5G) to see which band your WiiM devices join.

    • Tip: The 5 GHz band delivers higher speeds and lower latency—connect your WiiM devices to 5 GHz for the best audio‑streaming performance.



B. Add Additional FRITZ!Box Nodes (Repeaters)

Repeat the following on each secondary unit:

  1. Power On & Access UI
    Connect to the repeater’s Wi‑Fi or LAN and open
    http://fritz.box.

  2. Set as Mesh Repeater
    In Home Network → Mesh Settings, choose “FRITZ!Box as the Mesh Repeater.”

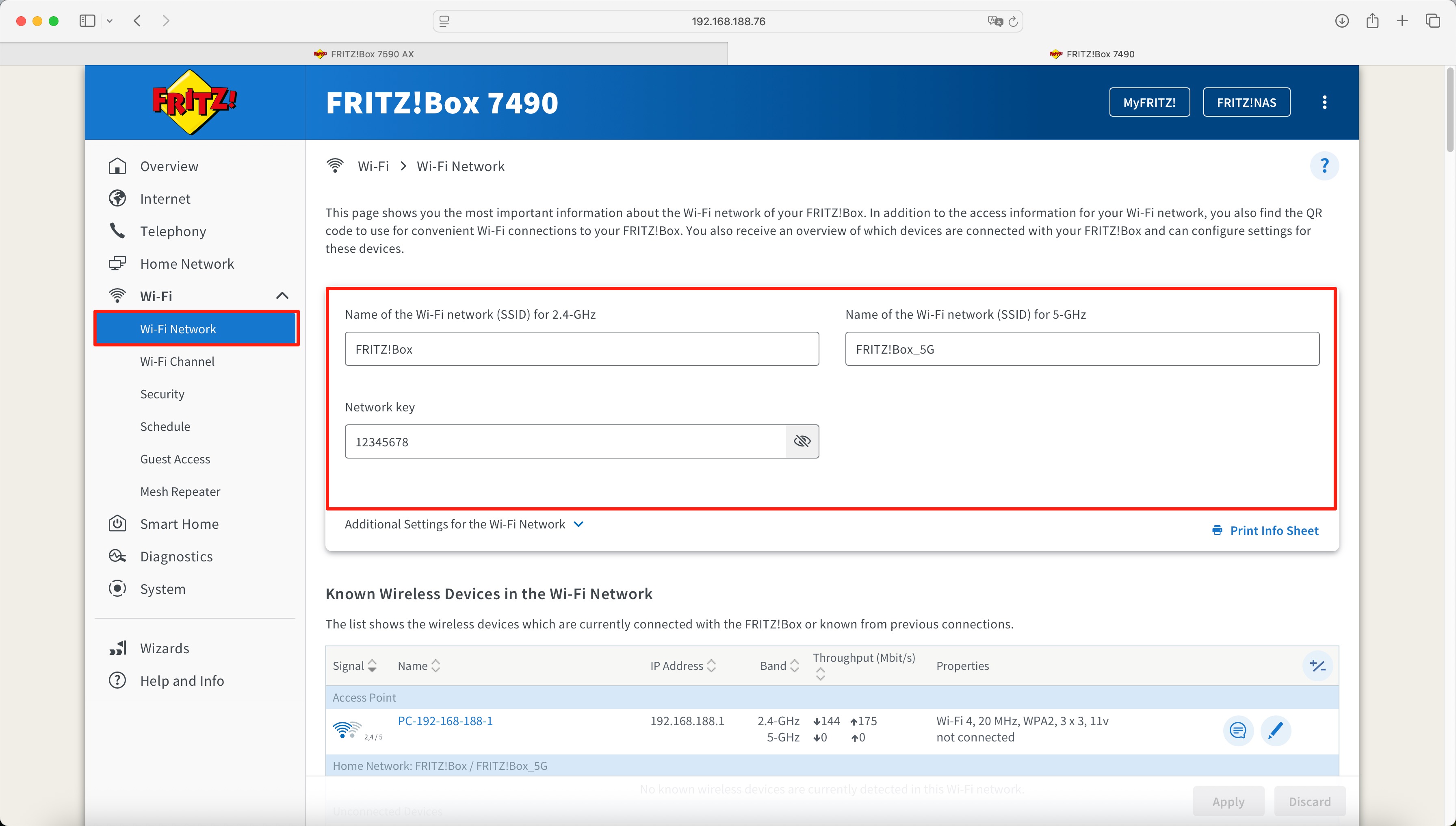

  3. Match SSID/Password
    Under Wi‑Fi → Radio Network, set both 2.4 GHz and 5 GHz SSID and network key identical to your Mesh Master.
    This enables seamless roaming: your devices jump between nodes without re‑authenticating.

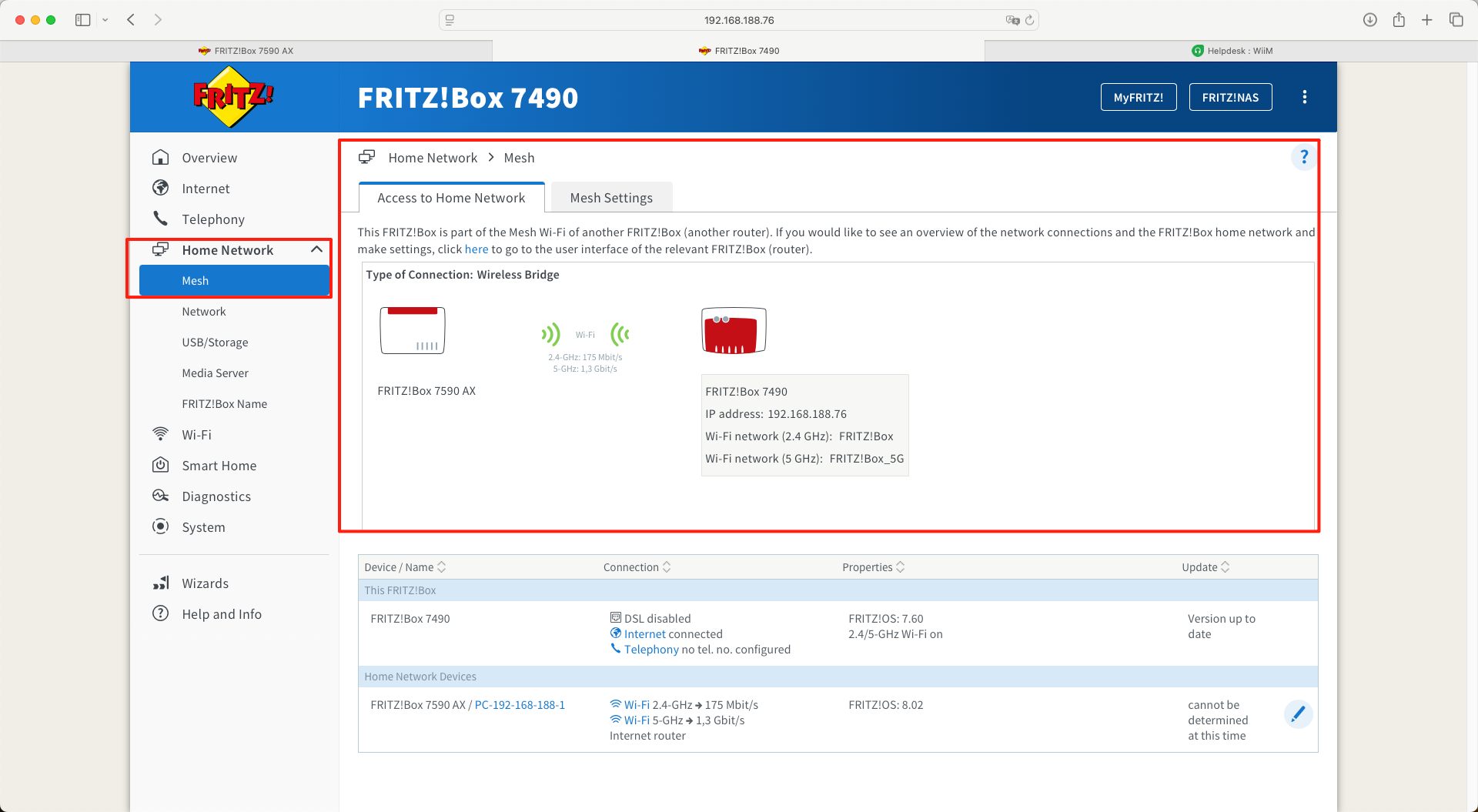

  4. Verify Mesh Connectivity
    Under Home Network → Mesh in the FRITZ!Box, ensure the status reads: “This FRITZ!Box is part of the Mesh Wi‑Fi network of another FRITZ!Box.”

  5. Placement Check

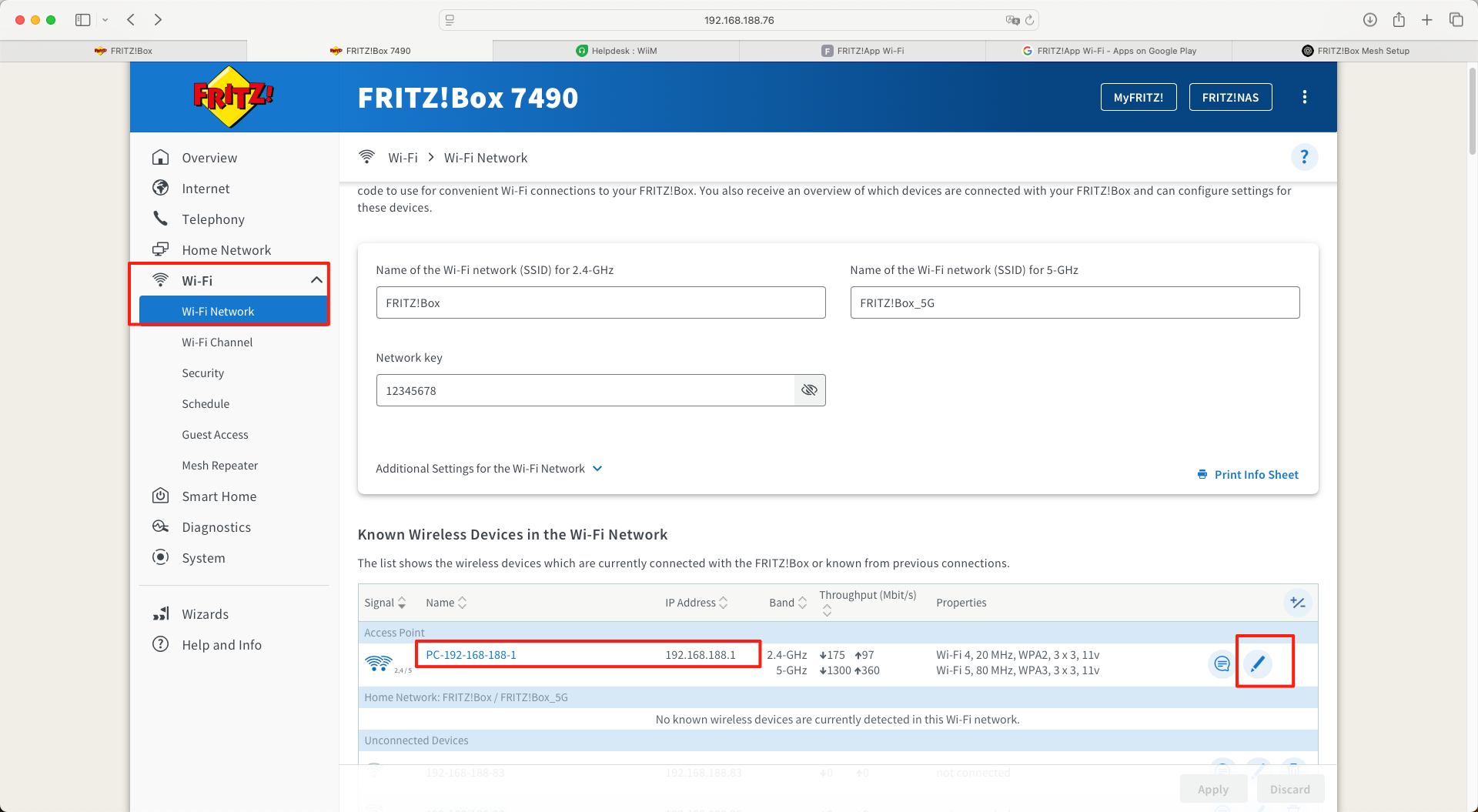

    • In the FRITZ!Box web interface, go to Wi‑Fi → Wi‑Fi Network.

    • Select the master’s entry (default IP – usually 192.168.178.1 or 192.168.188.1) and click Edit.

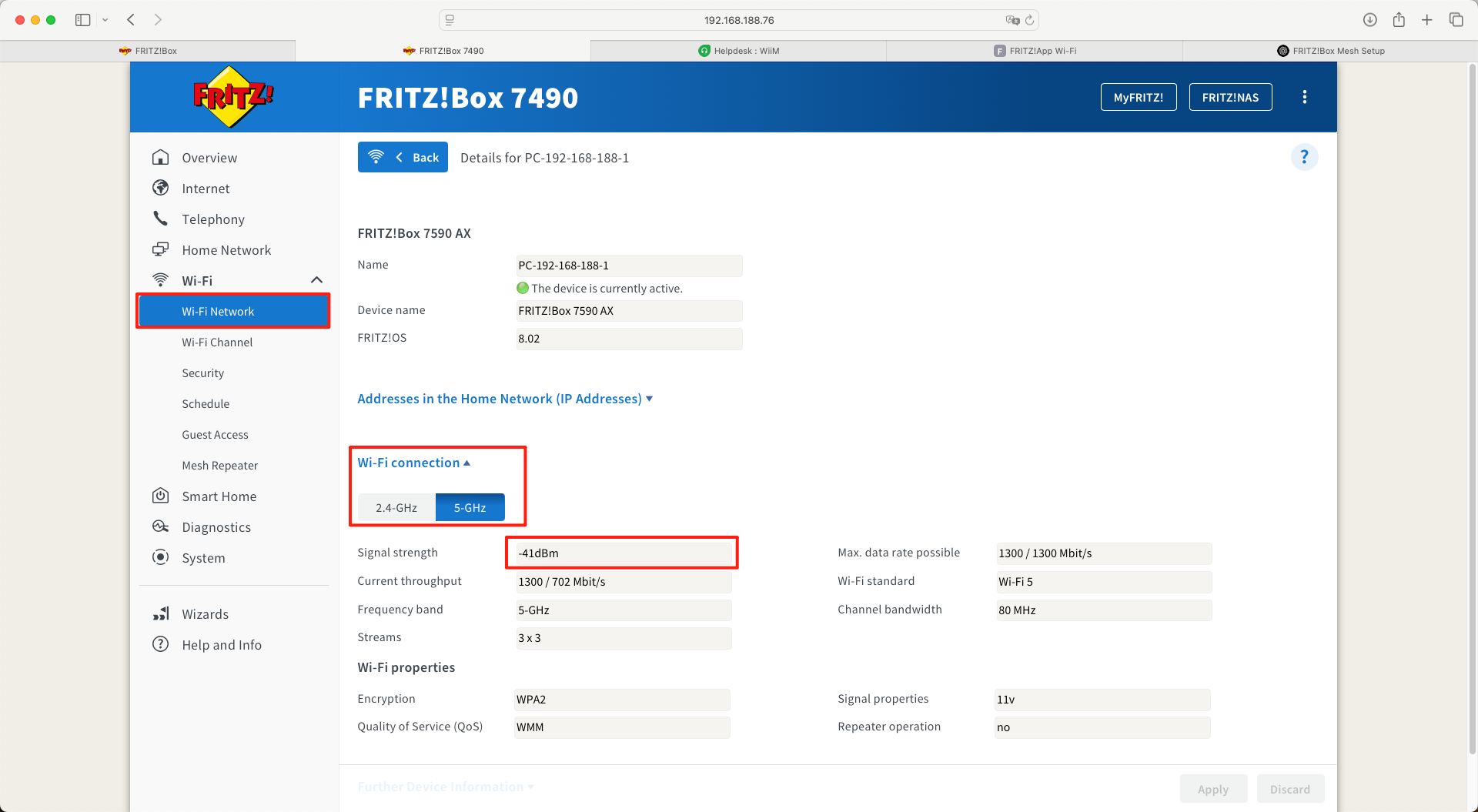

    • Scroll to Wi‑Fi Connections and note the Signal Strength (RSSI).

    • If it’s weaker than –65 dBm, move the repeater to a different location and retest until you consistently see ≥ –65 dBm.

  6. Repeat for any additional repeaters.


4. Best Practices for Stable WiiM Streaming

  1. Prioritize 5 GHz
    We recommend connecting your WiiM devices (and smartphones/tablets) to the 5 GHz band to minimize interference and maximize throughput. In our tests, the FRITZ!Box’s 2.4 GHz network occasionally delivered very low throughput—resulting in stuttering during playback.

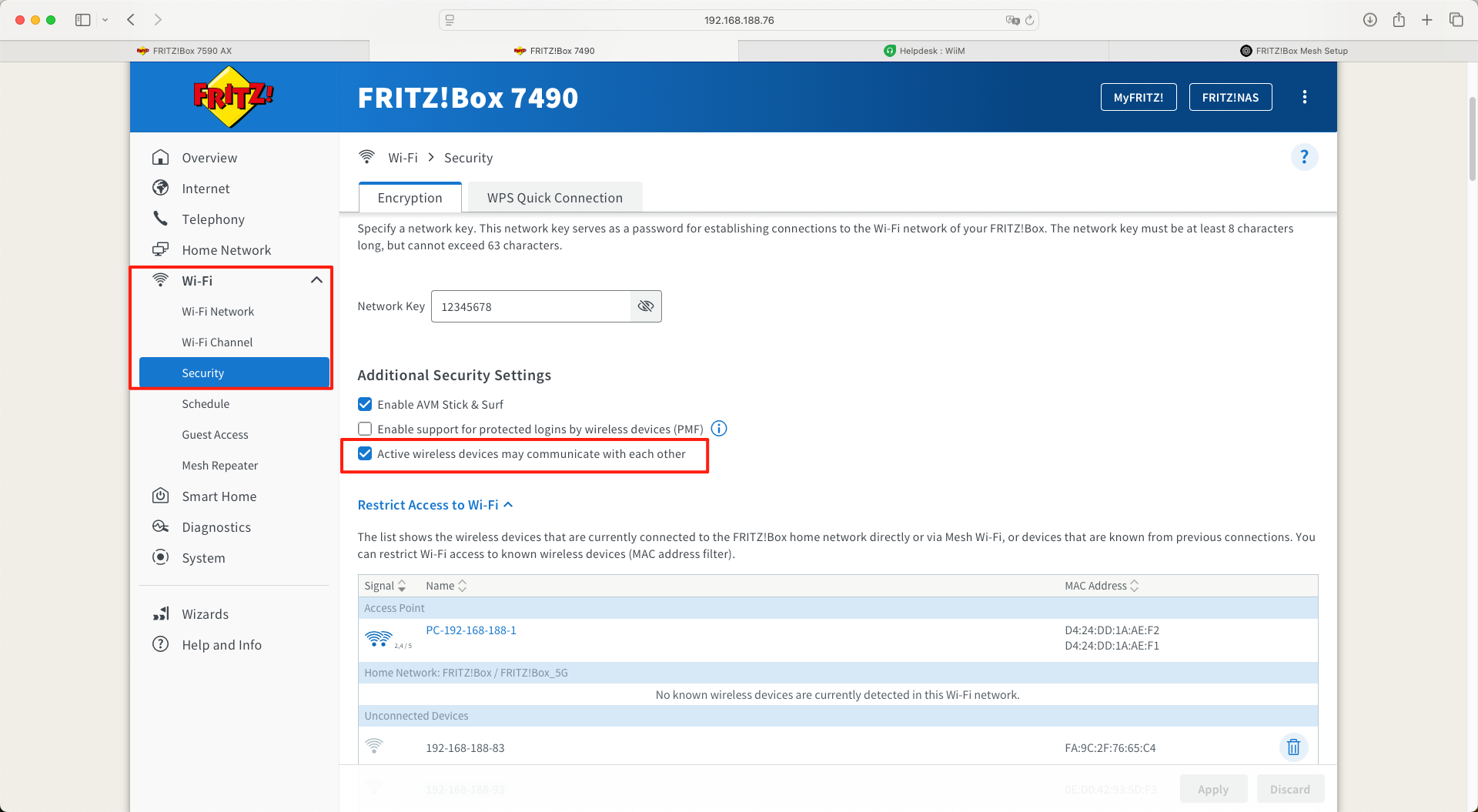

  2. Allow "Active wireless devices may communicate with each other" to allow your phone to communicate with WiiM devices.
  3. Reserve IP Addresses
    In Home Network → Network → IPv4 Addresses, assign each WiiM device a fixed (DHCP‑reserved) IP.
    This helps with UPnP/DLNA discovery and any port‑forwarding rules.

  4. Keep FRITZ!OS Updated
    Regularly check System → Update on every node. New firmware often improves mesh‑handling and wireless stability.

  5. Avoid Channel Overlap
    If you’re comfortable digging deeper, lock each node’s 2.4 GHz channel to a non‑overlapping channel (1, 6, or 11) to minimize co‑channel interference.

  6. Monitor Mesh Health
    Use the Mesh Overview dashboard to spot weak links—if a node reports low backhaul quality, reposition or switch to a LAN connection.


With this configuration, your FRITZ!Box mesh will deliver rock‑solid, ultra‑low‑latency Wi‑Fi—perfect for keeping every WiiM streamer in the house sounding its best. If you run into any other quirks, check AVM’s excellent knowledge base or let us know!
