To stream music via Bluetooth from your mobile device (e.g., smartphone or tablet) to your WiiM Amp Ultra, you need to pair your mobile device with the WiiM device first. This tutorial will guide you through the steps for Bluetooth pairing.

Pair Mobile Device with WiiM Amp Ultra


Step 1: Initiate Bluetooth Pairing Mode on WiiM Amp Ultra


There are several ways to initiate Bluetooth pairing on your WiiM Amp Ultra. Choose the option that best suits your preference and convenience.


Option 1: Switch to Bluetooth Input


When using this option, the WiiM Amp Ultra will first search for any paired mobile devices. If no device is paired or if the paired device is not found, it will enter Bluetooth pairing mode.


For Bluetooth re-pairing with a new mobile device, please turn off Bluetooth on the old mobile device before switching to the Bluetooth input.


Choose one of the method to switch to Bluetooth input:

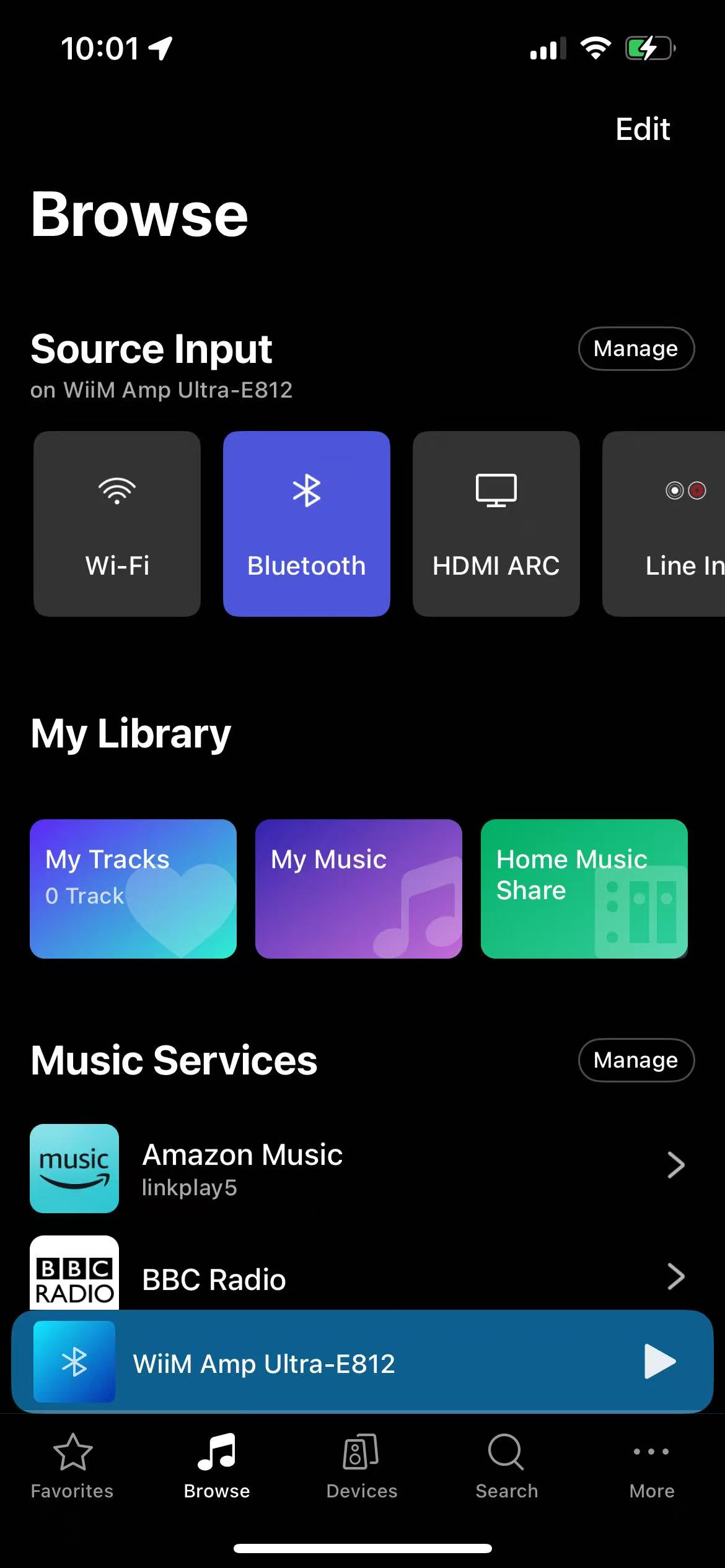

  • Method 1: Open the WiiM Home app and select Bluetooth input in Browse tap.

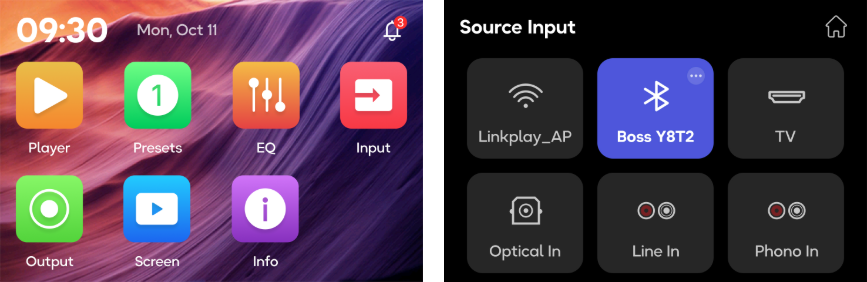

  • Method 2: Tap Input in your WiiM Amp Ultra's screen and select Bluetooth input.


  • Method 3: Press the Input Selection buttonon the WiiM Voice Remote.

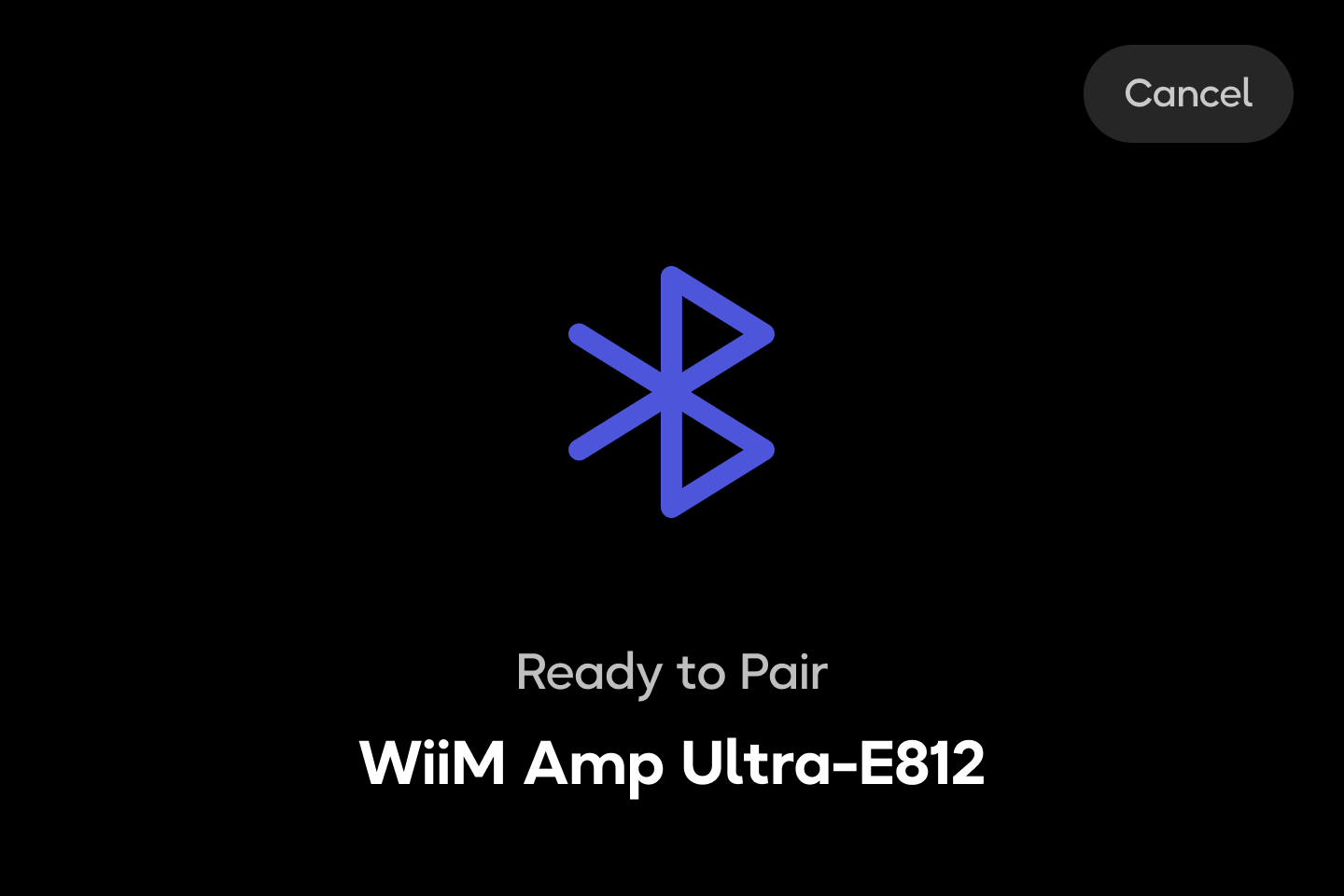

When using this option to initiate the Bluetooth pairing mode, the WiiM Amp Ultra's LED indicator will start flashing slowly in green, and a prompt, similar to the one below, will appear on the WiiM Amp Ultra's screen.


Option 2: Press the Play Buttonon the WiiM Voice Remote for 3 Seconds.


When using this option to initiate the Bluetooth pairing mode, you will see the WiiM Amp Ultra's LED indicator flashing slowly in green.


Option 3: Press and Hold Volume Knob on the WiiM Amp Ultra for 3 Seconds


This option initiates both Wi-Fi setup and Bluetooth pairing mode on the WiiM Amp Ultra .

This option is not recommended as it will disconnect the existing Wi-Fi connection.


Step 2: Complete Pairing on Your Mobile Device

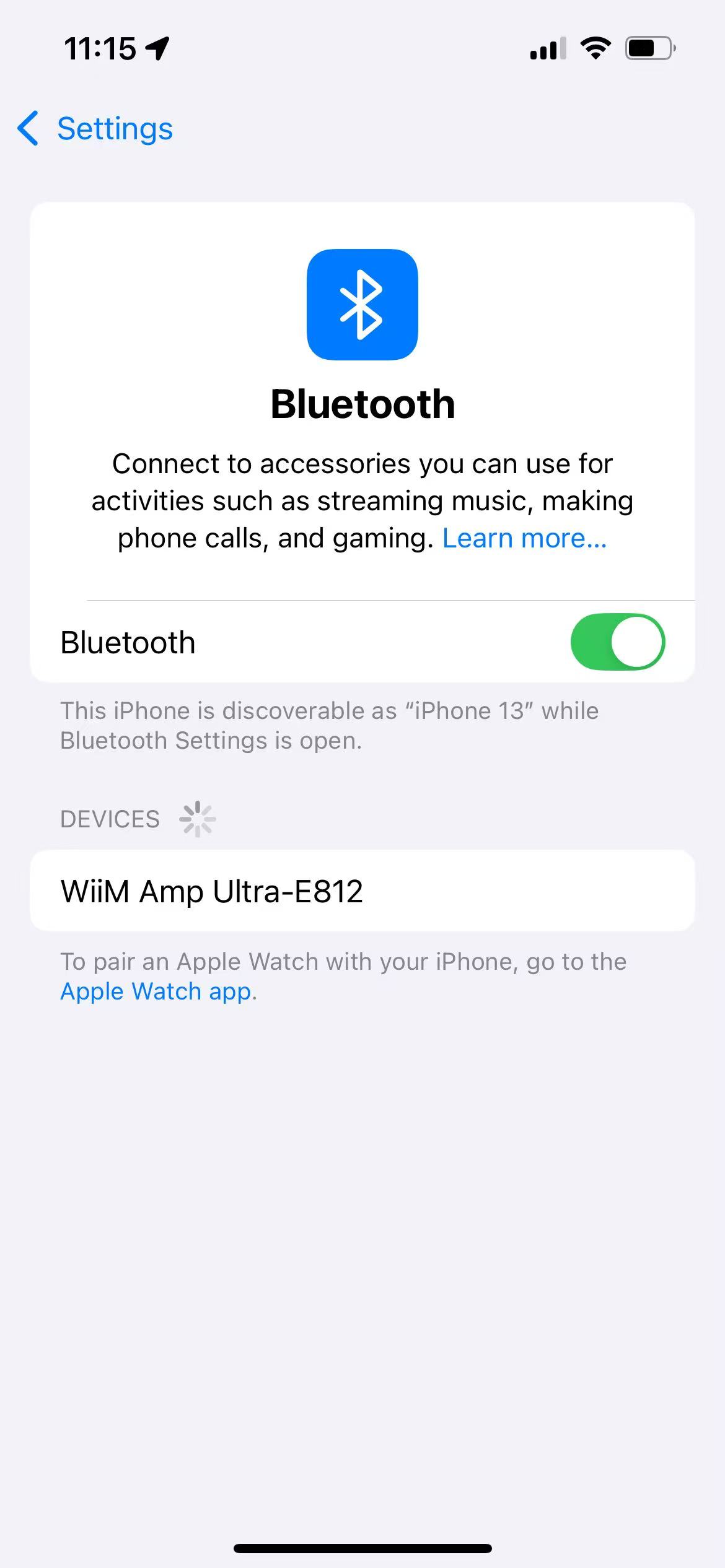

  1. Go to Settings on your mobile device and turn on Bluetooth. Your mobile device starts to search for available Bluetooth devices
  2. When your WiiM Amp Ultra appears in the device list, select it to complete the pairing process.

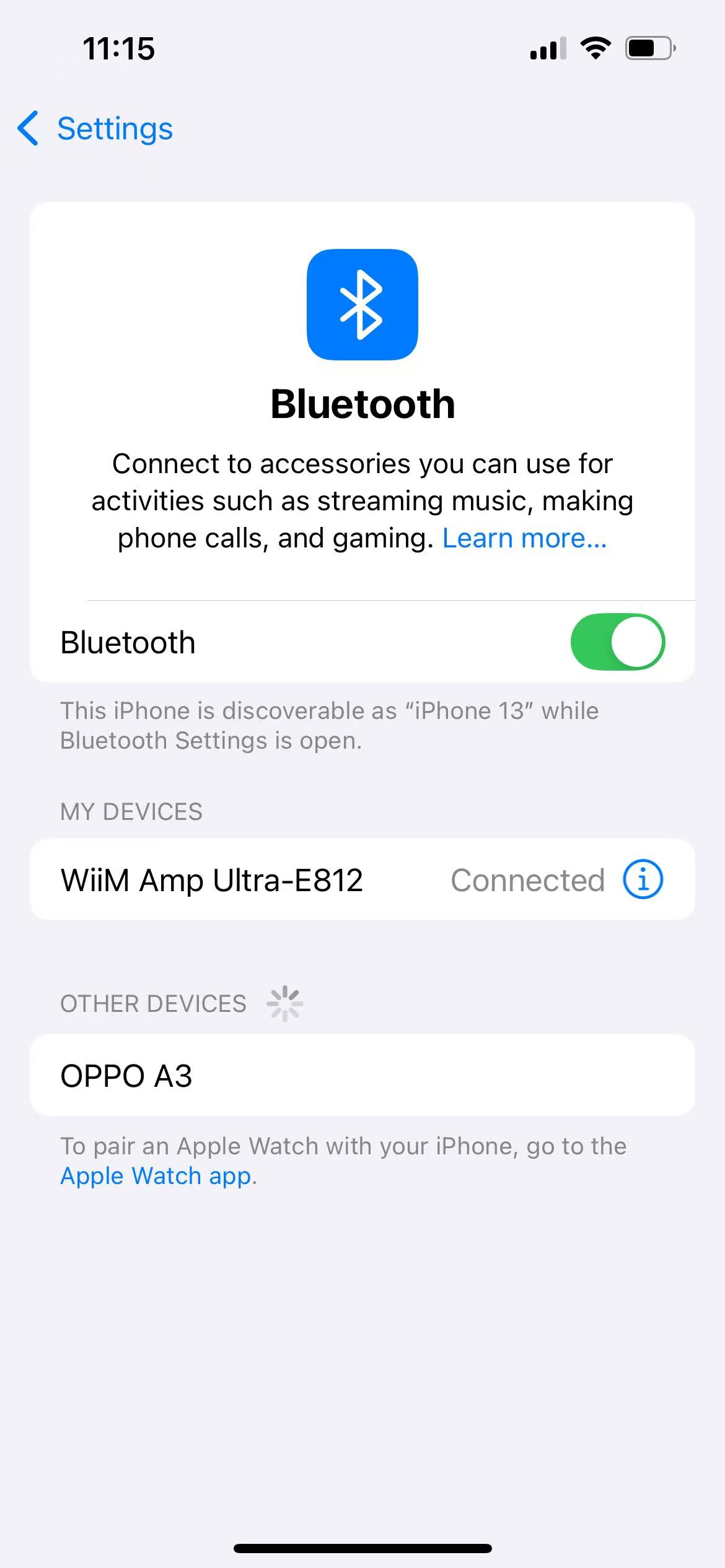

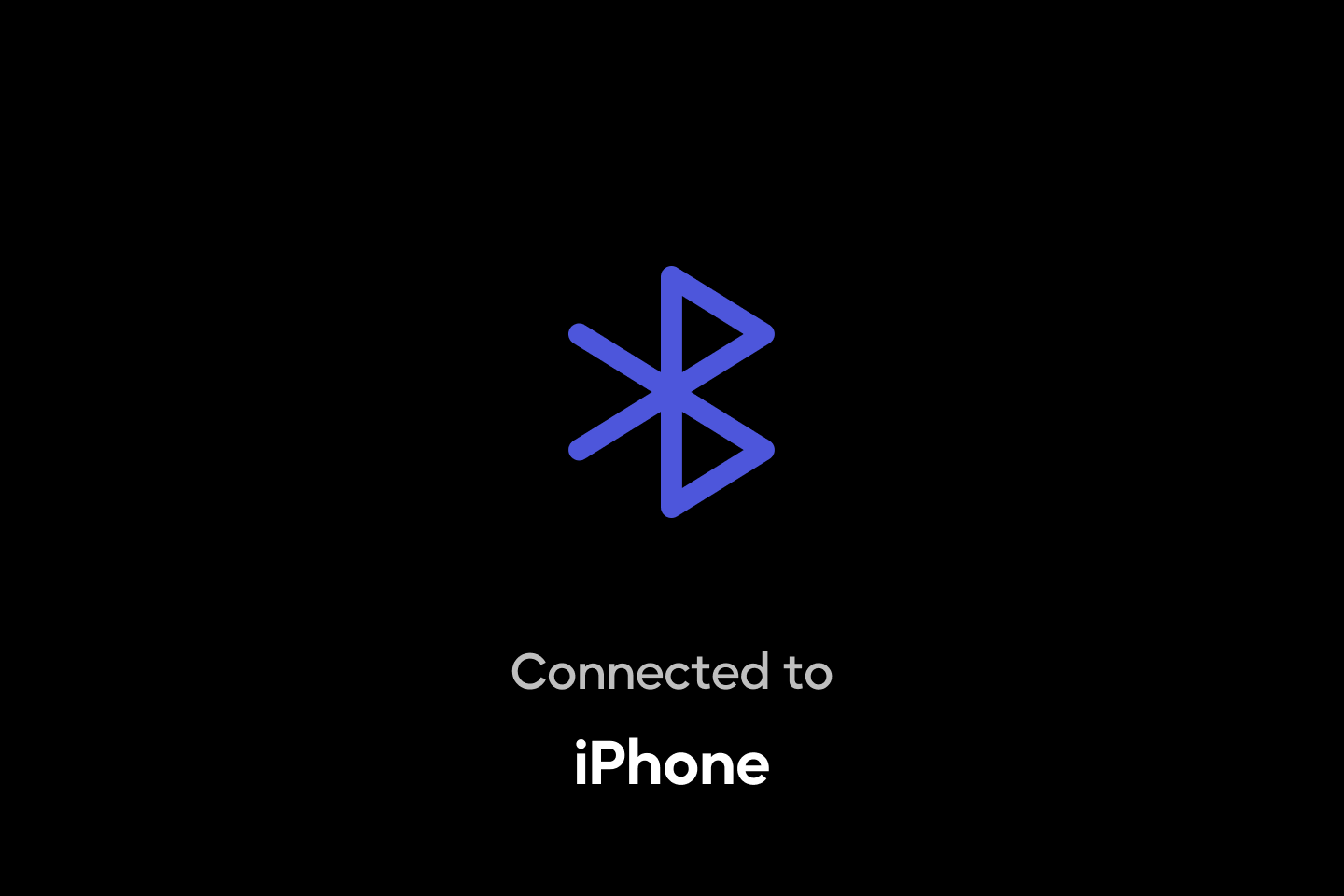

    Once paired successfully, the WiiM Amp Ultra's LED indicator will turn solid green, and a prompt, similar to the one below, will appear on its screen, depending on the way to initiate Bluetooth pairing mode on the WiiM Amp Ultra.


The LED indicator turns solid green only if Bluetooth pairing mode is initiated using Option 1.

The prompt on the WiiM Amp Ultra's screen will appear only if Bluetooth pairing mode is initiated using Option 1.

Disconnect WiiM Amp Ultra from Mobile Device


To disconnect the current Bluetooth connection, select one of the following options.


Option 1: Disconnect by Switching to an Input Other than Bluetooth or Wi-Fi


You can select an input other than Bluetooth and Wi-Fi via one of the following methods:

  • Method 1: Open the WiiM Home app and select an input in Browse tap.

  • Method 2: Tap Input in your WiiM Amp Ultra's screen and select an input.

  • Method 3: Press the Input Selection buttonon the WiiM Voice Remote to select an input.


Option 2: Disconnect from Mobile Device


  1. Go to the Bluetooth setting on your mobile device.

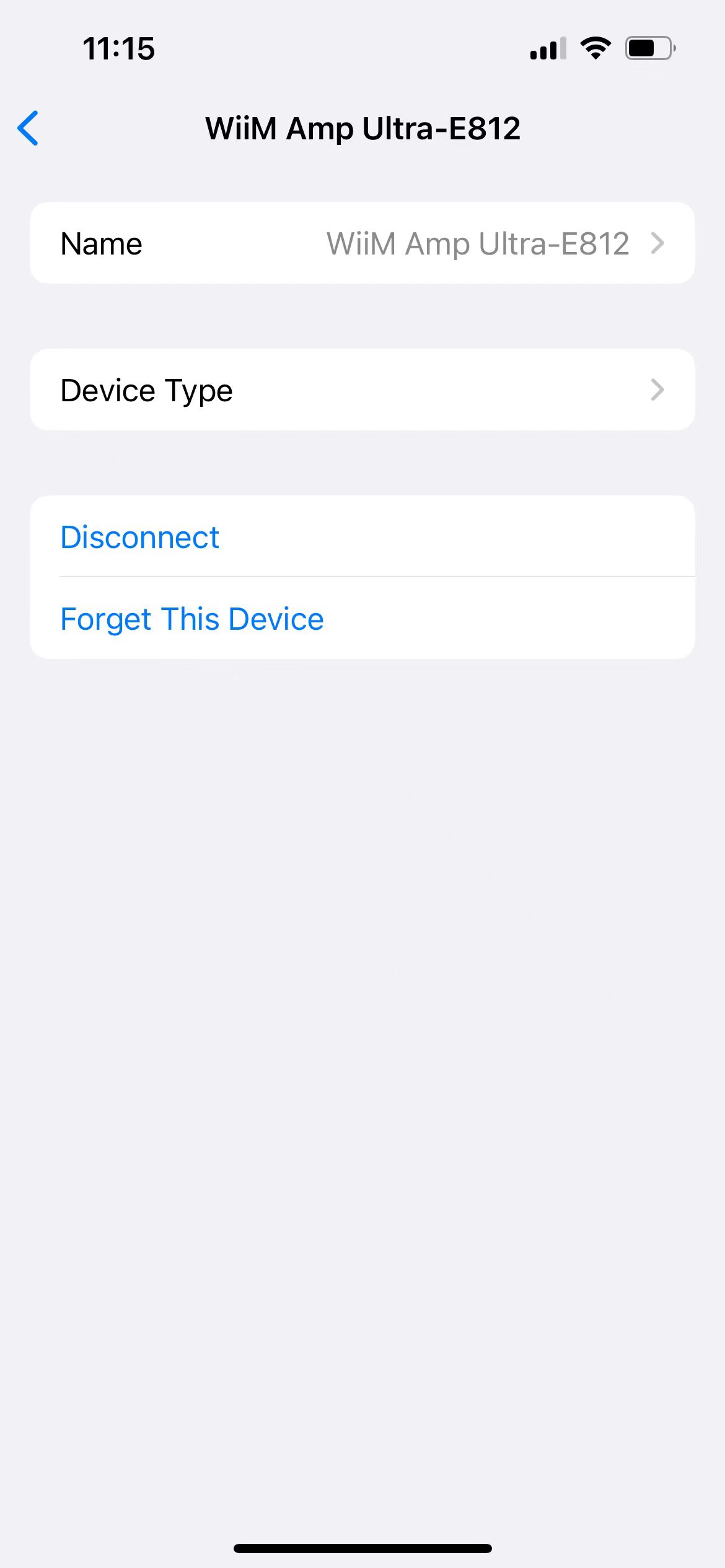

  2. Tap theicon next to the connected WiiM Amp Ultra.

  3. Tap Disconnect to close the Bluetooth connection with your WiiM Amp Ultra. Your WiiM Amp Ultra will appear as Not Connected on the mobile device.

Reconnect WiiM Amp Ultra to Mobile Device


To reconnect your WiiM Amp Ultra to the paired mobile device, select one of the following options.


Option 1: Reconnect by Switching Back to Bluetooth Input


Choose one of the following methods to switch back to Bluetooth input:

  • Method 1: Open the WiiM Home app and select Bluetooth input in Browse tap.

  • Method 2: Tap Input in your WiiM Amp Ultra's screen and select Bluetooth input.

  • Method 3: Press the Input Selection buttonon the WiiM Voice Remote 2.


Once switched, your WiiM Amp Ultra will automatically reconnect to the paired mobile device.


Option 2: Reconnect from Mobile Device


  1. Go to the Bluetooth setting on your mobile device.

  2. Tap your WiiM Amp Ultra to reconnect via Bluetooth.
