This article will introduce the controls, interfaces, and LED status lights of the WiiM Vibelink Amp.
Front Panel Controls and Lights

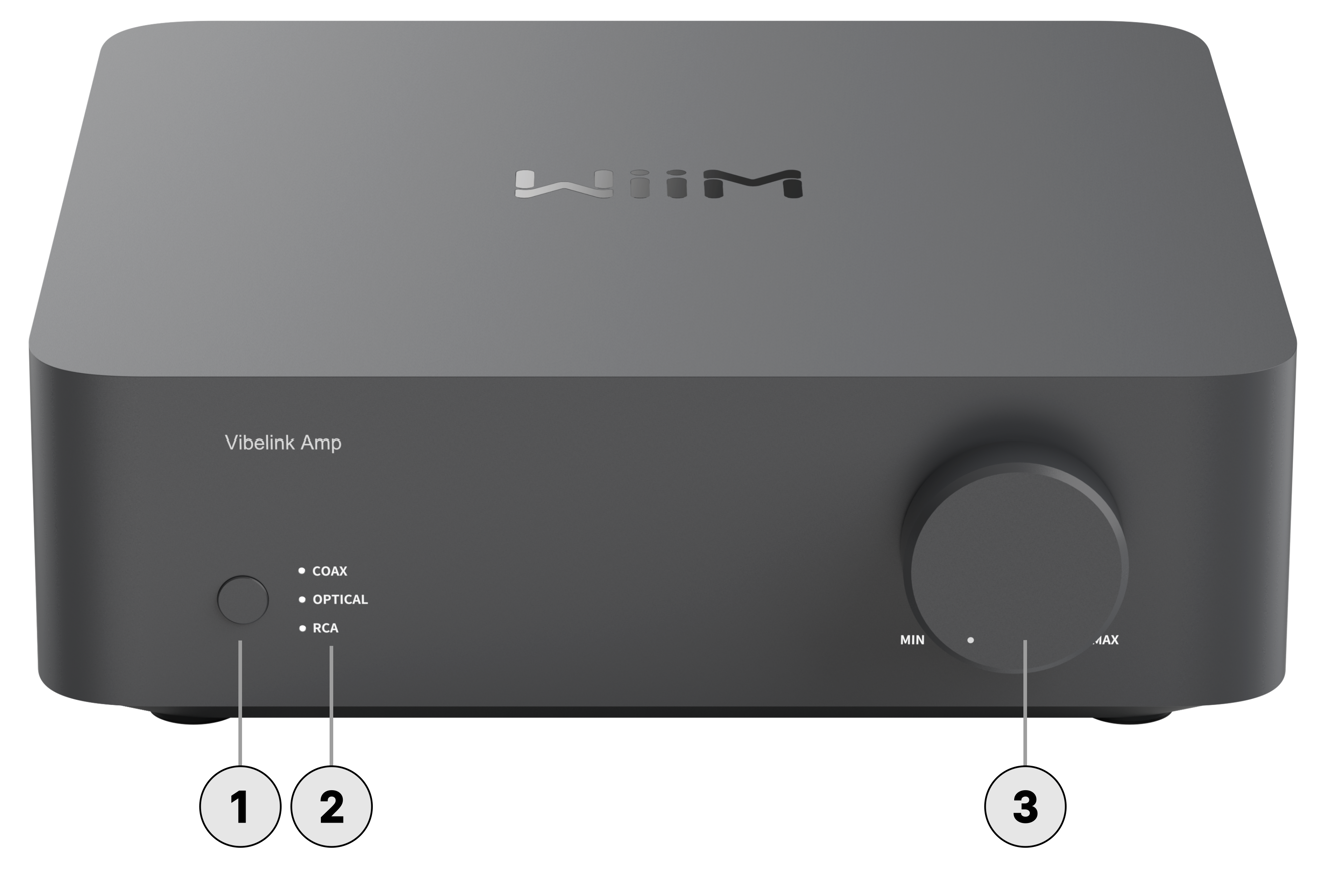

Each numbered control or light on the front panel is explained below:
Mode Switch | Press to switch the input mode between Coax, Optical, and RCA. | |
LED Indicators | Three RGB LEDs indicate source input and device status. For more information, see LED Status Lights. | |
Volume Knob | Rotate to adjust the volume level, with an indicator showing the current level. |
Back Panel Controls and Interfaces

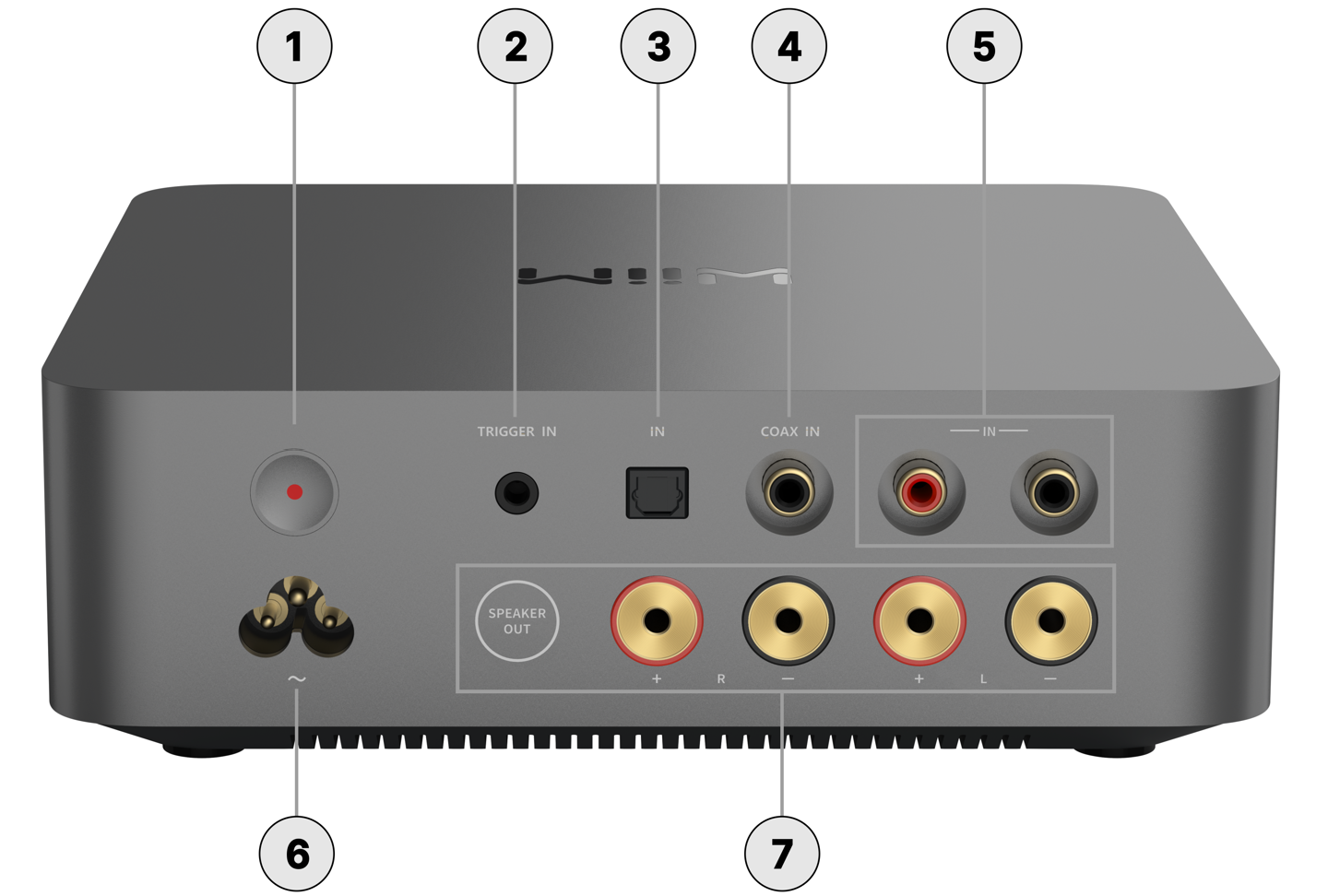

Each numbered control or interface on the back panel is explained below:
Standby | Tap to enter or exit standby. Press and hold for 2 to less than 5 seconds to power on/off. Press and hold for 5 seconds or more to restore to factory settings. Note: The WiiM Vibelink Amp automatically enters standby mode after 30 minutes of inactivity and sleep mode after 48 hours of inactivity. | |
12V Trigger In | Allows external devices (e.g., a WiiM Ultra) to control the power on/standby of the WiiM Vibelink Amp. | |
Optical In | For connecting digital audio sources (e.g., a WiiM Mini, WiiM Pro, WiiM Ultra, or TV) using an optical cable. | |
COAX In | For connecting digital audio sources (e.g., a WiiM Pro or WiiM Ultra) using a coaxial cable. | |
RCA In | Two RCA jacks (red and black) for connecting analog audio sources (e.g., a WiiM Pro, WiiM Ultra, or CD player) with an RCA cable. | |
Power Input | 100-240V AC, 50/60Hz, 3A Max | |
Speaker Output | Four speaker out jacks (R+, R-, L+, L-) to connect passive speakers using banana plugs, spade connectors, or bare wire. |
LED Status Lights
LED Color/Pattern | State | |
Slow Flashing White on Coax Mode | Boot-up | |
Solid Light Green | RCA-in mode | |
Solid Orange | Optical-in mode | |
Solid Purple | Coax-in mode | |
Slow Flashing White and Green on Current Input Mode | OTA | |
Slow Flashing White and Red on Current Input Mode | Restore to factory settings | |
Slow Flashing Red on Current Input Mode | Faulty error |
In standby mode, the LED light will dim to half brightness. In sleep mode, the LED light will turn off.
