Room correction is an essential part of optimizing the sound experience in any room. The acoustics of a room can significantly affect the sound quality, especially in the presence of reflections, standing waves, and reverberations. To address these challenges and improve the overall sound, Frequency-Dependent Windowing (FDW) is a powerful technique for enhancing the accuracy of room correction, particularly for high-frequency measurements. This tutorial will guide you through the process of applying FDW for precision room correction.
What is Frequency-Dependent Windowing (FDW)?
Frequency-Dependent Windowing (FDW) is a signal processing technique that uses different window functions for different frequency ranges. The primary goal of FDW is to improve the accuracy of measurements by addressing specific challenges that arise at different frequencies. In room correction, FDW is applied to filter out reflections, reverberations, and late-arriving sound waves that can distort the sound measurement.
- High-Frequency Optimization: High-frequency sounds have shorter wavelengths, making them more susceptible to reflections. FDW applies a short window function for higher frequencies, which helps in capturing the direct sound and minimizing the effects of late reflections.
- Low-Frequency Optimization: Low-frequency sounds, with longer wavelengths, typically involve a combination of direct sound and reverberation. FDW's impact on low-frequency processing is less pronounced, but it still aids in improving the clarity of low frequencies by reducing the effects of unwanted reflections.
The Importance of Room Correction
Room correction is the process of adjusting an audio system's sound output to compensate for the acoustical characteristics of the room. A room's shape, size, and surface materials can cause sound waves to reflect, refract, and bounce, creating an uneven listening experience.
- High-Frequency Sensitivity: The human ear is highly sensitive to high-frequency sounds. Therefore, reflections at higher frequencies can significantly impact clarity and precision.
- Low-Frequency Complexity: Low-frequency sound waves are more prone to mixing with reflections and reverberations due to their longer wavelengths. This makes low-frequency correction more challenging but crucial for achieving an accurate sound reproduction.
How FDW Enhances Room Correction
FDW helps to improve room correction by applying frequency-specific adjustments that allow for more accurate measurements and sound reproduction. Below is how FDW works in different frequency ranges:
High-Frequency Correction
- Reflection Minimization: High-frequency sound waves are more easily reflected off walls, ceilings, and other surfaces, leading to delayed echoes that degrade sound quality. FDW uses shorter window functions for high frequencies, ensuring that only the direct sound from the speaker is captured while minimizing the influence of late-arriving reflections.
- Enhanced Clarity: By focusing on the direct sound at higher frequencies, FDW ensures that the sound you hear is more accurate, with fewer unwanted echoes and distortions. This is especially important for treble frequencies and other sharp, transient sounds.
Low-Frequency Correction
- Handling Low-Frequency Reflections: Low-frequency sounds are less easily absorbed by the room, meaning they tend to mix with reverberations. While FDW's influence on low frequencies is less significant than for high frequencies, it still helps to reduce the impact of long-duration reverberations.
- Direct Sound and Reverberation Balance: FDW ensures that the low frequencies remain clear and impactful by balancing the direct sound and room reflections, thus improving overall bass response. However, additional room correction techniques (such as equalization or phase adjustments) are often used in conjunction with FDW for optimal low-frequency performance.
Advantages of Using FDW in Room Correction
- Precision in High-Frequency Measurements: FDW helps to ensure that high-frequency sounds are accurately measured, with minimal interference from room reflections.
- Improved Low-Frequency Clarity: By balancing direct sound and reverberations, FDW aids in producing a clearer and more defined low-frequency response.
- Natural Sound Reproduction: FDW allows room correction to more closely match the natural perception of sound by the human ear, improving the overall listening experience.
How to Use FDW in Room Correction
Follow these steps to enable FDW in Room Correction:
- Open the WiiM Home app.
- Go to the Devices tab and tap the Device Settings icon
of your WiiM device.
- Select Room Correction.
- Tap the Room Correction Settings iconin the top-right corner.

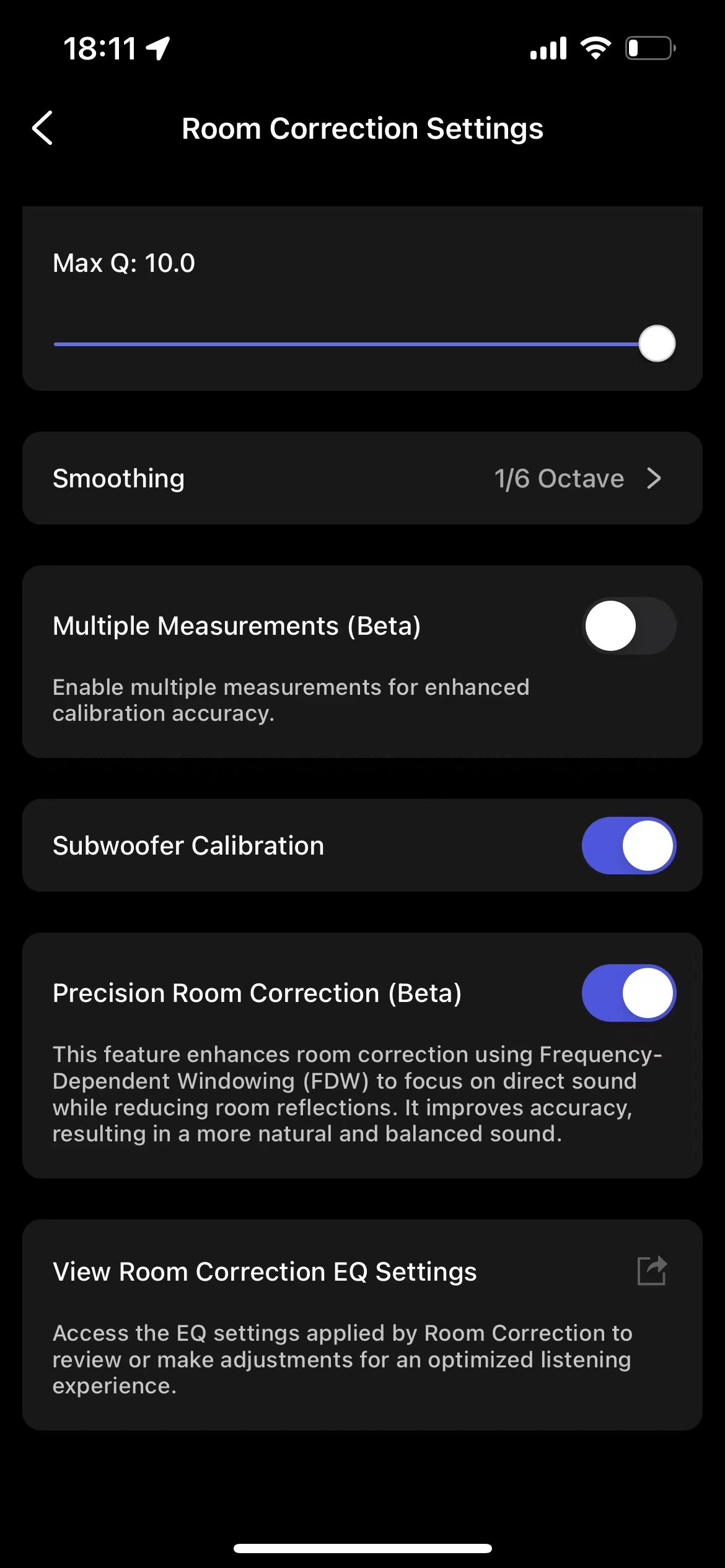

- Toggle on Precision Room Correction.
- Go back to proceed with the Room Correction process. For detailed instructions, see Optimizing Your Audio Experience: A Comprehensive Guide to Room Correction.
Potential Side Effects of FDW
While FDW is effective for improving measurement accuracy, especially at high frequencies, it can introduce some side effects if not used carefully:
- Masking real room problems: FDW can make measurements look smoother by filtering out reflections, which may hide actual acoustic issues in the room.
For example, FDW measurements can appear smooth with no obvious peaks or dips, leading users to believe that the room’s acoustics are excellent and that there is no need for sound absorption or diffusion. However, the listening experience remains blurry and the imaging unstable. - Inconsistent results across listening positions: FDW measurements are typically taken at a single point, so corrections may not work well for other seating positions.
For example, a home theater system might perform an FDW measurement at the center of the sofa, resulting in outstanding sound quality. However, when a family member sits on the side of the sofa, they may notice that the vocals sound excessively bright or the high frequencies are overly pronounced. - Incorrect handling of some speaker types: For certain speakers, such as coaxial or waveguide designs, FDW may misjudge the timing of the direct sound.
For example, with coaxial speakers (e.g., KEF LS50), FDW may yield an excellent measurement curve, but in practice, high-frequency details are weakened, making vocals unclear and sound muffled. - Overly smooth graphs: FDW can make response curves look ideal, potentially misleading less experienced users into thinking the system needs no further tuning.
Conclusion
FDW is a powerful technique for achieving precision room correction, especially in environments where reflections and reverberations distort sound measurements. By applying FDW to both high and low frequencies, you can optimize your audio system for clearer, more accurate sound, making it well-suited for both home audio systems and professional environments.
Whether you're correcting for the high-frequency clarity or optimizing low-frequency bass, FDW allows for a more targeted and effective room correction process. With the combination of FDW and traditional room correction techniques, you'll be able to achieve optimal sound quality that is finely tuned to your room's acoustics.
