The WiiM Mini offers the Aux In audio input port. You can connect devices like CD players, TVs, PCs, or turntables, to your WiiM Mini via this port for analog audio input.
How to Use the Aux In Port

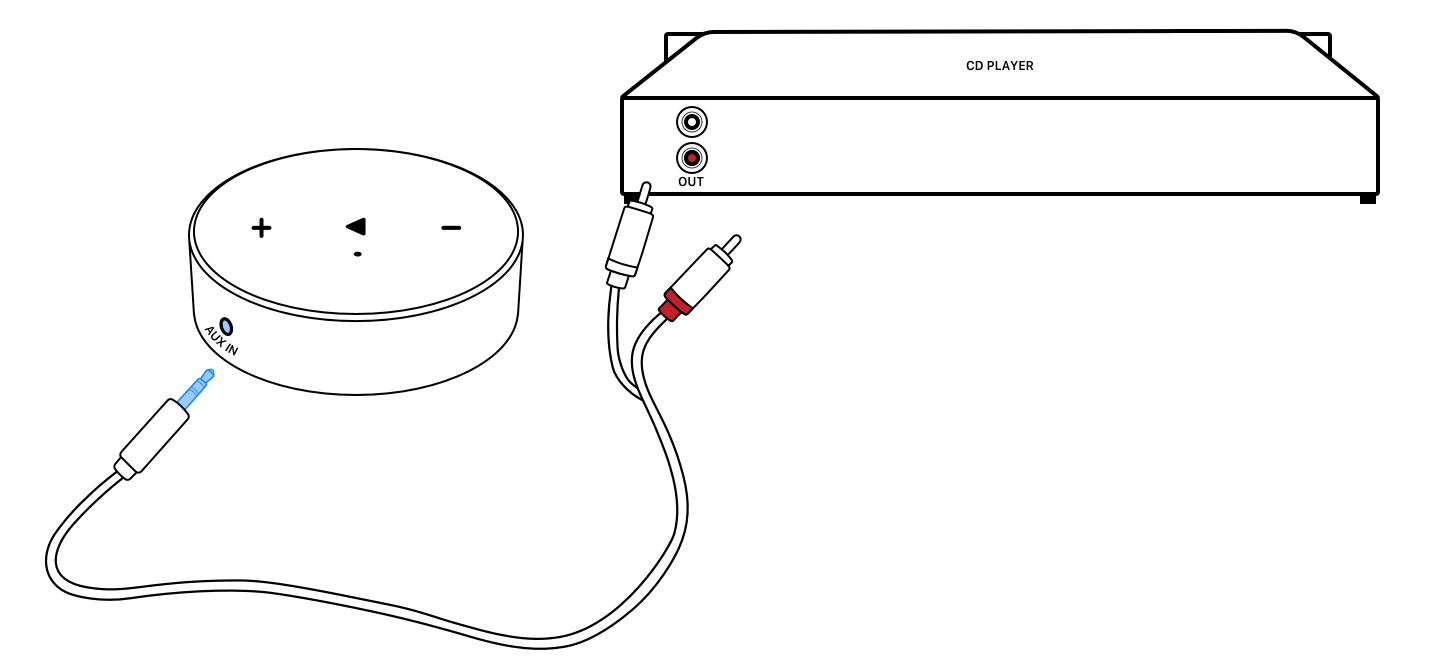

This example shows how to use the Aux In port to connect a CD player:
- Plug the 3.5mm connector of the cable into the Aux In port on the WiiM Mini.
- Plug the other end of the cable into the Aux Out or Line Out port on your audio source (CD player or PC).
- Select the source input as Aux In in the WiiM Home app, or enable Auto-sensing of Aux In. For details, see How to Select Audio Input.
- Play music on the CD player. The music will stream to your WiiM Mini.
Similarly, you can connect other audio devices to your WiiM Mini via the Aux In port in the same process.
How to Use the Aux In Port with Multi-room
The WiiM Mini supports all its audio inputs—Wi-Fi/Ethernet, Bluetooth, and Aux In—as sources for your multi-room system. By connecting an audio source device (e.g., a CD player or TV) to your WiiM Mini, you can stream audio to any other WiiM devices on the same network.
For detailed instructions, refer to How to Play WiiM Multi-Room Music from Your CD Player, Turntable, or PC.
How to Select Audio Input
Automatically Select Audio Input Using Auto-Sensing
The auto-sensing feature allows your WiiM Mini automatically to play audio from the connected input when a signal is detected.
To enable auto-sensing, follow these steps:
- Open the WiiM Home App.
- Navigate to the Devices tab.
- Tap the Device Settings icon
of your WiiM device.

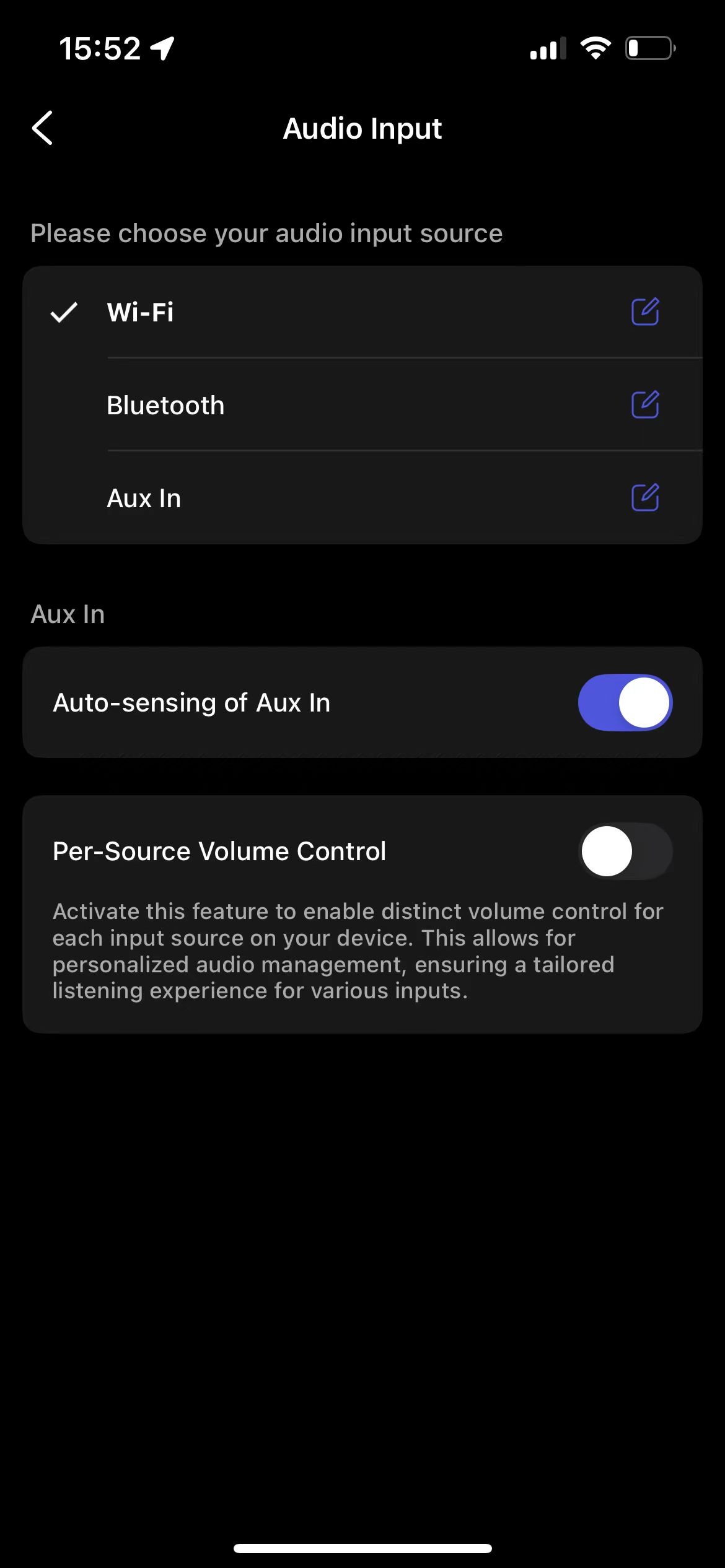

- Select Audio Input and enable Auto-sensing of Aux In.
By enabling auto-sensing, your WiiM Mini will automatically switch to the active audio input, offering a seamless and convenient listening experience.
Auto-sensing works only when your WiiM device isn't playing audio from the current input source. For example, if your WiiM device is playing music over Wi-Fi and you start audio on Aux In, it won't automatically switch to that input.
Manually Select Audio Input
You can also manually select the desired audio input on your WiiM Mini in the following ways.
- Method 1: From Audio Input in Devices Settings of the WiiM Home App
- Method 2: From the Source Input section in the Browse tab of the WiiM Home App

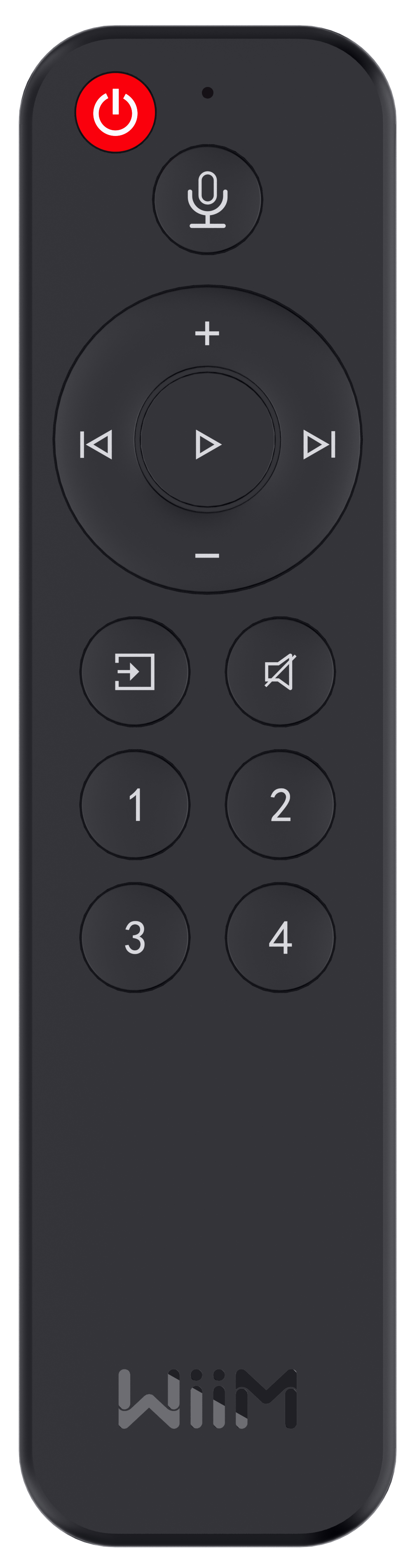

- Method 3: Pressing the
Button on the WiiM Voice Remote
Edit Input Sources
To make switching between input sources more convenient, you can manage which sources are visible—keeping your most frequently used inputs easy to access.
For detailed instructions, see Manage Input Sources in the WiiM Home App’s Browse Tab.
