This article will guide you through using an external microphone for RoomFit™ in the WiiM Home app. With an external microphone, you can achieve more precise acoustic measurements for your space.

For the best results, we recommend using a calibrated external microphone. Popular choices include:

  • UMIK-1
  • iMM-6(C)
  • Other compatible measurement microphones. If available, import the calibration file that matches your microphone to improve measurement accuracy.

Note: An external microphone typically comes with a USB or headphone plug. Ensure that the microphone is compatible with your smartphone or tablet.

Step-by-Step Guide

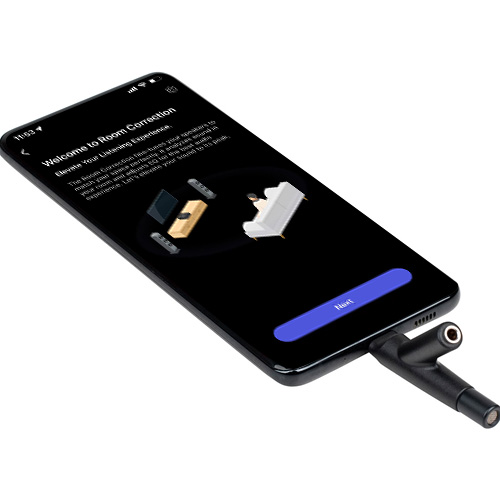

  1. Connect the External Microphone

    Plug your external microphone into your smartphone or tablet, usually via USB or headphone jack.

  2. Launch the WiiM Home App

    Open the WiiM Home app on your smartphone or tablet.

  3. Import the Calibration File (if available)

    If your microphone has a calibration file, download it from the manufacturer's website and save it on your device. Then, follow the instructions in Tutorial: Microphone Calibration File Import in WiiM Home to import the calibration file to the WiiM Home app.

  4. Run the RoomFit™ Process

    Go to Devices > Device Settings > RoomFit™ in the WiiM Home app, then follow the on-screen instructions to complete the process. The app will guide you through the steps to measure your room's acoustics using the connected microphone.

Note: During the RoomFit™ process, follow these instructions:

  • ALWAYS hold the phone as far away from your body as possible.
  • ALWAYS point the external microphone towards the speaker you are currently measuring.
  • ALWAYS avoid obstructions between the external microphone and the speaker.
  • ALWAYS place the external microphone at ear level (if you sit while listening, use the height of your ears when seated).
  • Ensure the microphone, the listener's ears, and the speaker's acoustic center are approximately at the same height.

For detailed instructions, see Optimizing Your Audio Experience: A Comprehensive Guide to RoomFit™.

Common Questions

Q: What is the role of my smartphone during RoomFit™?

A: Your smartphone plays a central role in the RoomFit™ process. It:

  • Captures audio from the connected external microphone.
  • Uses the calibration file, if provided, to improve measurement accuracy.
  • Displays the measurement results and applies the room correction EQ settings.

Q: Does the WiiM device detect the microphone directly?

A: No. The WiiM device does not directly detect or interact with the microphone. The external microphone is connected to your smartphone or tablet, and the RoomFit™ process is fully managed by the WiiM Home app.

Q: How does the signal flow during measurement?

A: During the RoomFit™ process:

  • The speakers play test tones.
  • The microphone captures the sound in the room.
  • The smartphone analyzes the audio data using the calibration file (if provided).
  • The WiiM Home app then creates and applies a custom EQ profile to optimize your listening experience.
